Determination of Cd in Environmental Geological Samples by Inductively Coupled Plasma-Mass Spectrometry with Membrane Desolvation
-
摘要: 应用电感耦合等离子体质谱法（ICP-MS）分析环境地质样品中的Cd时，Zr、Mo元素的氧化物和氢氧化物会对Cd造成严重干扰，导致结果有明显的偏差。针对此问题，本文建立了膜去溶-ICP-MS直接测定环境地质样品中微量Cd的分析方法，该方法可有效地消除Zr、Mo氧化物和氢氧化物对Cd的干扰，保证结果准确、可靠。膜去溶-ICP-MS相比于常规ICP-MS测定Cd的方法，可将Zr、Mo氧化物和氢氧化物对Cd的干扰降低到0.001%，检测灵敏度提高3.5倍左右。在给定条件下，Cd的检出限为0.28 ng/L，测定下限为2.2 ng/L，精密度（RSD，n=12）为2.2%。利用该方法分析20种岩石、土壤和沉积物国家标准物质的测定值与标准值相符，表明膜去溶-ICP-MS法直接测定环境地质样品中痕量或超痕量Cd时具有一定的应用潜力。同时，用该方法对2016年中核集团组织的实验室间两个比对样品中的Cd进行测定，稳健Z比分数分别为0.500和-0.964，Z的绝对值都小于2。
-
关键词:
- 膜去溶 /
- 电感耦合等离子体质谱法 /
- 镉 /
- 环境地质样品

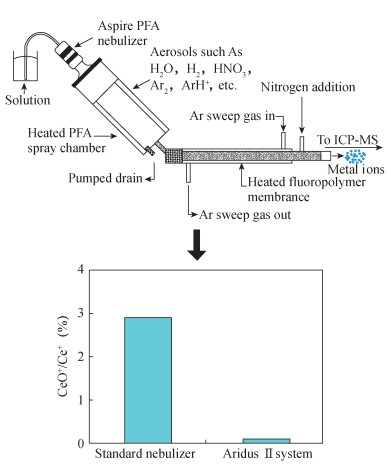

Abstract: Cadmium suffers from significant Zr and Mo based oxide/hydroxide interferences during Inductively Coupled Plasma-Mass Spectrometry (ICP-MS) analysis of environmental samples, which can result in a significant deviation of the results. Direct determination method of Cd in environmental geological samples by ICP-MS with membrane desolvation has been developed in this study. This method can effectively eliminate the interference of Zr, Mo oxides and hydroxides, and ensure the results are accurate and reliable. Compared with the conventional method of ICP-MS, the interference of Zr and Mo oxides and hydroxides can be reduced to 0.001% when membrane desolvation is used. Meanwhile, the sensitivity of Cd can be increased 3.5 times. Under the given conditions, the detection limit of Cd was 0.28 ng/L, the lower limit of determination was 2.2 ng/L, and the precision (RSD, n=12) was 2.2%. The method was applied to analyze 20 Chinese environmental geological reference materials. The analytical results are consistent with the certificated values. It indicates that the proposed method has a great potential for the direct determination of trace or ultra-trace levels of cadmium in environmental geological samples. At the same time, the method was used to determine Cd in two comparison samples between two laboratories in 2016. This comparison was organized by the China National Nuclear Corporation. The Z-scores were 0.500 and -0.964, respectively for the two laboratories, and the absolute values of Z were less than 2.
-
致谢: 感谢国家地质实验测试中心温宏利教授级高级工程师在样品处理和测试工作中的帮助和指导。
-
![]()

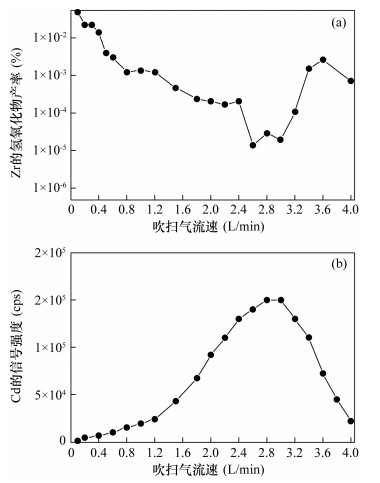

图 1 在膜去溶-ICP-MS测量条件下，吹扫气流速对(a) 94Zr 16OH+/90Zr和(b) 111Cd信号的影响
Figure 1. Variation of the signal intensities of (a) 94 Zr16OH+/90Zr and (b) 111Cd with sweep gas flow rate
![]()

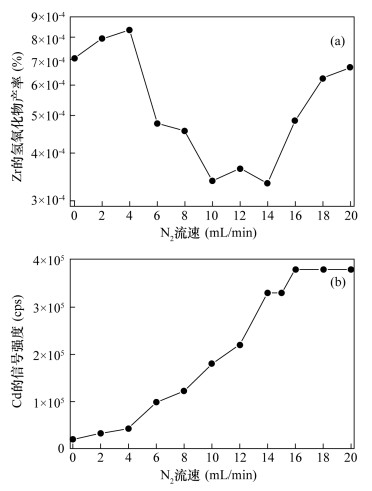

图 2 在膜去溶-ICP-MS测量条件下，N2的流速对(a) 94 Zr16OH+/90Zr和(b) 111Cd信号的影响
Figure 2. Variation of the signal intensities of (a) 94 Zr16OH+/90Zr and (b) 111Cd with N2 flow rate
表 1 仪器工作参数
Table 1 Operating conditions of the instruments
ICP-MS工作参数 膜去溶系统工作参数 仪器型号 iCAP Q 仪器型号 Aridus Ⅱ RF射频功率 1250 W 吹扫气流速 2.0~8.0 L/min 雾化气流速 0.89 mL/min 氮气流速 0~20 mL/min 辅助气流速 0.80 mL/min 喷射腔温度 110℃ 冷却气流速 13.0 mL/min 膜去溶温度 160℃ 跳峰 3点/质量 雾化气流速 0.7~1.0 L/min 信号采集方式 脉冲
下载: 导出CSV
表 2 方法精密度
Table 2 Precision tests of the method
Cd的标准值
(μg/g)Cd的本法测定值
(μg/g)平均值
(μg/g)RSD
(%)0.060±0.022 0.050 0.052 0.049 0.050
0.049 0.049 0.050 0.049
0.050 0.052 0.049 0.0500.050 2.2
下载: 导出CSV
表 3 标准物质分析结果
Table 3 Analytical results of reference materials
标准物质
编号Cd含量(μg/g) 测定值 标准值 GBW07103 0.016 0.029±0.014 GBW07104 0.051 0.061±0.014 GBW07105 0.066 0.067±0.016 GBW07106 0.044 0.060±0.016 GBW07107 0.011 0.033±0.017 GBW07108 0.061 0.070±0.020 GBW07113 0.138 0.140±0.030 GBW07304 0.180 0.190±0.020 GBW07305 0.800 0.820±0.050 GBW07307 1.010 1.050±0.060 GBW07309 0.230 0.240±0.040 GBW07310 1.030 1.120±0.080 GBW07311 2.030 2.300±0.200 GBW07312 3.700 4.000±0.300 GBW07401 4.000 4.300±0.600 GBW07403 0.050 0.060±0.022 GBW07404 0.320 0.350±0.060 GBW07405 0.390 0.450±0.060 GBW07406 0.140 0.130±0.030 GBW07408 0.120 0.130±0.020
下载: 导出CSV
表 4 使用膜去溶和未使用膜去溶对111Cd测定结果对比
Table 4 A comparison of measurement results for 111Cd with and without membrane desolvation, respectively
标准物质和
实际样品Cd的测定值(μg/g) 未使用膜去溶 使用膜去溶 GBW07113 0.572
0.5810.136
0.137Albriug-09 0.361
0.3650.068
0.065Albriug-10 1.02
1.040.351
0.352
下载: 导出CSV
-
Balmuri S R, Selvaraj U, Kumar V V, et al.Effect of surfactant in mitigating cadmium oxide nanoparticle toxicity:Implications for mitigating cadmium toxicity in environment[J].Environmental Research, 2017, 152:141-149. doi: 10.1016/j.envres.2016.10.005
Eichler A, Tobler L, Eyrikh S, et al.Icecore based assessment of historical anthropogenic heavy metal (Cd, Cu, Sb, Zn) emissions in the Soviet Union[J].Environmental Science & Technology, 2014, 48(5):2635-2642. doi: 10.1021/es404861n?src=recsys
Moritz B, Ulrich A, Rehmus A, et al.Accumulation of cadmium and uranium in arable soils in Switzerland[J].Environmental Pollution, 2017, 221:85-93. doi: 10.1016/j.envpol.2016.11.035
Oliveira F M, Marchioni C A, Barros J A V, et al.Assessment of cadmium and iron adsorption in sediment, employing a flow injection analysis system with on line filtration and detection by flame atomic absorption spectrometry and thermospray flame furnace atomic absorption spectrometry[J].Analytica Chimica Acta, 2014, 809:82-87. doi: 10.1016/j.aca.2013.11.048
Fırat M, Bakırdere S, Fındıkoglu S M, et al.Deter-mination of trace amount of cadmium using dispersive liquid-liquid microextraction-slotted quartz tube-flame atomic absorption spectrometry[J].Spectrochimica Acta Part B:Atomic Spectroscopy, 2017, 129(1):37-41. doi: 10.1007/s12161-016-0484-8.pdf
徐子优.固体直接进样-石墨炉原子吸收光谱法测定土壤中镉元素[J].中国无机分析化学, 2013, 3(3):8-12. http://www.wenkuxiazai.com/doc/e3e1a269b90d6c85ed3ac64c.html Xu Z Y.Determination of cadmium in soil by direct solid sample introduction-graphite furnace atomic absorption spectrometry[J].Chinese Journal of Inorganic Analytical Chemistry, 2013, 3(3):8-12. http://www.wenkuxiazai.com/doc/e3e1a269b90d6c85ed3ac64c.html
Wu Q H, Wu C X, Wang C, et al.Sensitive determination of cadmium in water, beverage and cereal samples by a novel liquid-phase microextraction coupled with flame atomic absorption spectrometry[J].Analytical Methods, 2011, 3:210-216. doi: 10.1039/C0AY00524J
Wysocka I, Vassileva E.Determination of cadmium, copper, mercury, lead and zinc mass fractions in marine sediment by isotope dilution inductively coupled plasma mass spectrometry applied as a reference method[J].Microchemical Journal, 2016, 18:198-207. https://www.sciencedirect.com/science/article/pii/S0026265X16300534
Inagaki K, Takatsu A, Uchiumi A, et al.Determination of cadmium in sediment by isotope dilution inductively coupled plasma mass spectrometry using a co-precipitation separation technique[J].Journal of Analytical Atomic Spectrometry, 2001, 16:1370-1374. doi: 10.1039/b106974h
Suzuki Y, Endo Y, Ogawa M, et al.Determination of sub-ppb cadmium in urine by solid-phase extraction and inductively coupled plasma-mass spectrometry[J].Analytical Sciences, 2008, 24(8):1049-1052. doi: 10.2116/analsci.24.1049
何红蓼, 胡明月, 巩爱华, 等.碘化物升华分离-电感耦合等离子体光谱法测定土壤和沉积物中砷、锑、铋、镉、锡[J].光谱学与光谱分析, 2008, 28(3):663-666. http://d.wanfangdata.com.cn/Periodical/gpxygpfx200803044 He H L, Hu M Y, Gong A H, et al.Determination of As, Sb, Bi, Cd and Sn in soils and sediments by inductively coupled plasma atomic emission spectrometry after sublimation separation as iodides[J].Spectroscopy and Spectral Analysis, 2008, 28(3):663-666. http://d.wanfangdata.com.cn/Periodical/gpxygpfx200803044
Bagheri A, Behbahani M, Amini M M, et al.Simultane-ous separation and determination of trace amounts of Cd(Ⅱ) and Cu(Ⅱ) in environmental samples using novel diphenylcarbazide modified nanoporous silica[J].Talanta, 2012, 89:455-461. doi: 10.1016/j.talanta.2011.12.062
周丽萍, 李中玺.王水提取-电感耦合等离子体质谱法同时测定地质样品中微量银、镉、铋[J].分析试验室, 2005, 24(9):20-25. doi: 10.3969/j.issn.1000-0720.2005.09.006 Zhou L P, Li Z X.Determination of silver, cadmium and bismuth in geological samples by inductively coupled plasma mass spectrometry with aqua regia treatment[J].Chinese Journal of Analysis Laboratory, 2005, 24(9):20-25. doi: 10.3969/j.issn.1000-0720.2005.09.006
徐娟, 胡兆初, 刘勇胜, 等.膜去溶-电感耦合等离子质谱测定21种国际地质标样中的银[J].分析化学, 2008, 31(11):1493-1498. doi: 10.3321/j.issn:0253-3820.2008.11.008 Xu J, Hu Z C, Liu Y S, et al.Direct determination of Ag in 21 international geological reference materials by membrane desolvation-inductively coupled plasma-mass spectrometry[J].Chinese Journal of Analytical Chemistry, 2008, 31(11):1493-1498. doi: 10.3321/j.issn:0253-3820.2008.11.008
韩国军, 伍星, 童坚.膜去溶-ICP-MS测定高纯CeO2中14种痕量稀土杂质分析方法研究[J].中国稀土学报, 2009, 27(1):137-144. http://www.doc88.com/p-1734639407498.html Han G J, Wu X, Tong J.Determination of 14 trace rare earth impurities in high-purity CeO2 by inductively coupled plasma mass spectrometry with membrane desolvation[J].Journal of the Chinese Rare Earth Society, 2009, 27(1):137-144. http://www.doc88.com/p-1734639407498.html
刘妹, 程志中, 顾铁新, 等.矿石与钼精矿成分分析标准物质研制[J].岩矿测试, 2013, 32(6):944-951. http://www.ykcs.ac.cn/article/id/5de9c6e9-d9d6-484b-9abf-4837aad9d90c Liu M, Cheng Z Z, Gu T X, et al.Preparation of molybdenum ore and molybdenum concentrate reference materials[J].Rock and Mineral Analysis, 2013, 32(6):944-951. http://www.ykcs.ac.cn/article/id/5de9c6e9-d9d6-484b-9abf-4837aad9d90c
李自强, 李小英, 钟琦, 等.电感耦合等离子体质谱法测定土壤重金属普查样品中铬铜镉铅的关键环节研究[J].岩矿测试, 2016, 35(1):37-41. doi: 10.15898/j.cnki.11-2131/td.2016.01.007 Li Z Q, Li X Y, Zhong Q, et al.Determination of Cr, Cu, Cd and Pb in soil samples by inductively coupled plasma-mass spectrometry for an investigation of heavy metal pollution[J].Rock and Mineral Analysis, 2016, 35(1):37-41. doi: 10.15898/j.cnki.11-2131/td.2016.01.007
李力争, 韩张雄, 王龙山, 等.电感耦合等离子体质谱法测定地球化学样品中镉[J].分析试验室, 2016, 31(12):69-72. http://www.cqvip.com/QK/92500X/201212/44117490.html Li L Z, Han Z X, Wang L S, et al.Determination of Cd in geochemical samples by inductively coupled plasma-mass spectrometry[J].Chinese Journal of Analysis Laboratory, 2016, 31(12):69-72. http://www.cqvip.com/QK/92500X/201212/44117490.html
Guo W, Hu S H, Xie Y F, et al.Direct determination of trace cadmium in environmental samples by dynamic reaction cell inductively coupled mass spectrometry[J].Chemosphere, 2010, 81(11):1463-1468. doi: 10.1016/j.chemosphere.2010.08.056
孙朝阳, 董利明, 贺颖婷, 等.电感耦合等离子体质谱法测定地质样品中钪镓锗铟镉铊时的干扰及其消除方法[J].理化检验(化学分册), 2016, 52(9):1026-1030. http://www.cqvip.com/QK/96266X/201609/670077582.html Sun C Y, Dong L M, He Y T, et al.Elimination of interferences in ICP-MS determination of Sc, Ga, Ge, In, Cd and Tl in geological sample[J].Physical Testing and Chemical Analysis (Part B:Chemical Analysis), 2016, 52(9):1026-1030. http://www.cqvip.com/QK/96266X/201609/670077582.html
