Method for the Determination of Trace Elements in the Carbonate Fraction of Marine Sediments
-

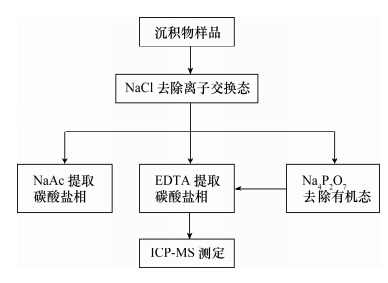

摘要: 海相沉积物中自生沉积碳酸盐相的微量元素携带极为丰富的原始地质信息，然而海相沉积物中碳酸盐相的测定还没有建立统一的标准方法。本文以修正的Tessier七步提取流程为基础，以电感耦合等离子体质谱法(ICP-MS)为检测手段，针对海相沉积物碳酸盐相组分中V、Cr、Co、Ni、Sr五种微量元素建立了分级提取方法。实验以海相沉积物样品和标准物质作为参考样品，对比了NaAc和EDTA提取碳酸盐相的效果。结果表明，NaAc不能完全提取出沉积物碳酸盐相中的微量元素；EDTA可以较好地提取自生海相沉积物碳酸盐相中的微量元素，但是由于其络合能力太强还会提取有机物结合态的金属元素。本研究确定的分级提取方法是：首先用中性盐NaCl去除离子交换态，然后用提取专一性较强的焦磷酸钠(pH=10)去除有机态，再用EDTA提取仅自生海相沉积物的碳酸盐相。方法精密度(RSD)均 < 5%，各元素的检出限在0.5~4.3 ng/g之间，回收率在88.0%~101.6%之间，方法的选择性和稳定性能够满足地球化学样品形态分析的要求。Abstract: Trace elements in the carbonate of marine sediments carry abundant original geological information. However, there is no uniform standard method for the determination of carbonate in marine sediments. In this paper, an extraction method is described for five kinds of trace elements (V, Cr, Co, Ni and Sr) of carbonate phase in the marine sediments by using Inductively Coupled Plasma-Mass Spectrometry (ICP-MS), which is based on the modified seven steps extraction processes by Tessier. Two extraction agents (EDTA and NaAc) were used to extract carbonate fraction for marine sediment samples and standard materials. The results indicate that the NaAc cannot be used to fully extract the trace elements from the carbonate phase in sediments. The EDTA can better extract the carbonate phase of marine sediments, but organic complex metals were also extracted based on the strong complexation ability for metallic elements. In this experiment, we initially removed the ion exchange state by using NaCl and excluding the organic material by pyrophosphate (pH=10) which was an extractant with strong selectivity. Next, the terragenous carbonate of marine sediments was extracted by EDTA. The precision of the method was less than < 5%, the detection limit of each element was in the range of 0.5-4.3 ng/g, and the recoveries were between 88.0%-101.6%. Selectivity and stability of the method meet the requirements of geochemical sample morphological analysis.
-
-
表 1 ICP-MS工作参数
Table 1 Instrument parameters of ICP-MS
工作参数 设定条件 高频发射功率 1100 W 等离子体气(Ar)流量 15.0 L/min 辅助气(Ar)流量 1.2 L/min 雾化气流量 0.98 L/min 透镜电压 6.0 V
下载: 导出CSV
表 2 NaAc和EATA提取方法分析结果对比
Table 2 Comparison of analytical results with NaAc and EDTA extraction methods
提取方法 样品编号 w/(μg·g-1) V Cr Co Ni Sr NaAc提取(方法1) 样品1 0 0.06 0.17 0.28 0.42 样品2 0 0.06 0.17 0.23 0.39 GBW 07436 0 0.014 0.013 0.062 0.09 EDTA提取(方法2) 样品1 1.39 2.95 3.27 2.97 5.11 样品2 1.23 3.15 3.2 2.62 5.35 GBW 07436 0.85 0.05 1.7 1.1 1.85
下载: 导出CSV
表 3 有机态去除后EDTA提取方法测定结果
Table 3 Analytical results of elements with EDTA extraction method after eliminating the organic state
提取方法 样品编号 w/(μg·g-1) V Cr Co Ni Sr Na4P2O7去除有机态，EDTA提取 样品1 0.57 1.58 2.80 2.58 3.19 样品2 0.52 2.03 2.40 2.28 3.2 GBW 07436 0.042 0.03 1.29 0.95 0.74
下载: 导出CSV
表 4 精密度、检出限及加标回收率测定结果
Table 4 The precisions,detection limits and spiked recoveries of the method
技术指标 V Cr Co Ni Sr RSD/% 0.5 0.7 0.4 4.2 2.3 检出限/(ng·g-1) 0.5 3.5 4.3 1.0 2.13 加标回收率/% 95.4 98.0 101.6 89.6 88.0
下载: 导出CSV
-
汪凯明,罗顺社.海相碳酸盐岩锶同位素及微量元素特征与海平面变化[J].海洋地质与第四纪地质,2009,29(6): 51-58. http://www.cnki.com.cn/Article/CJFDTOTAL-HYDZ200906012.htm 熊小辉,肖加飞.沉积环境的地球化学示踪[J].地球与环境,2011, 39(3): 405-414. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDQ201103021.htm 刘刚,周东升.微量元素分析在判别沉积环境中的应用——以江汉盆地潜江组为例[J].石油实验地质,2007, 29(3): 307-310. doi: 10.11781/sysydz200703307 王随继,黄杏珍.泌阳凹陷核桃园组微量元素演化特征及其古气候意义[J].沉积学报, 1997, 15(1): 65-70. http://www.cnki.com.cn/Article/CJFDTOTAL-CJXB701.011.htm 常华进,储雪蕾,冯连君,黄晶,张启锐.氧化还原敏感微量元素对古海洋沉积环境的指示意义[J].地质论评,2009,55(1): 91-99. http://www.cnki.com.cn/Article/CJFDTOTAL-DZLP200901015.htm Strakhov N M.The types of iron in sediments of the Black Sea [J].Doklady Akademii Nauk Sssr,1958,118(4): 803-806.
Nicholls G D.Trace elements in sediments: An assess-ment of their possible utility as depth indicators [J]. Marine Geology,1967, 5(5): 539-555.
严兆彬,郭福生,潘家永,郭国林,张日静.碳酸盐岩C,O,Sr同位素组成在古气候、古海洋环境研究中的应用[J].地质找矿论丛,2005,20(1): 53-65. http://www.cnki.com.cn/Article/CJFDTOTAL-DZZK200501009.htm Magaritz M, Holser W T, Kirschvink J L. Carbon-isotope events across the Precambrian/Cambrian boundary on the Siberian Platform [J].Nature,1986,320: 258-259. doi: 10.1038/320258a0
王大锐,白玉雷,赵治信.塔里木盆地海相古生界化学地层学研究[J].石油勘探与开发,1999,26(1):18-20. http://www.cnki.com.cn/Article/CJFDTOTAL-SKYK901.006.htm 高志前,樊太亮,李岩,刘武宏,陈玉林.塔里木盆地寒武-奥陶纪海平面升降变化规律研究[J].吉林大学学报：地球科学版,2006, 36(4):549-556. http://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ200604008.htm Scherer M, Seitz H.Rare-earth element distribution in Holocene and Pleistocene corals and their redistribution during diagenesis [J].Chemical Geology,1980,28: 279-289. doi: 10.1016/0009-2541(80)90049-2
Webb G E, Kamber B S.Rare earth elements in Holo-cene reefal microbialites: A new shallow seawater proxy[J].Geochimica et Cosmochimica Acta,2000,64(9): 1557-1565. doi: 10.1016/S0016-7037(99)00400-7
Shields G, Webb G. Has the REE composition of sea-water changed over geological time [J].Chemical Geology,2004,204: 103-107. doi: 10.1016/j.chemgeo.2003.09.010
Rongemaille E, Bayon G, Pierre C, Chu N C, Fouquet Y, Riboulot V, Voisset M.Rare earth elements in cold seep carbonates from the Niger delta[J].Chemical Geology,2011,286: 196-206.
Zhao Y Y, Zheng Y F, Chen F K.Trace element and strontium isotope constraints on sedimentary environment of Ediacaran carbonates in southern Anhui, South China [J].Chemical Geology,2009,265(3): 345-362.
黄晶,储雪蕾,常华进,冯连君.三峡地区埃迪卡拉系陡山沱组帽碳酸盐岩的微量元素和稀土元素研究[J].科学通报,2009,54(22): 3498-3506. http://www.cnki.com.cn/Article/CJFDTOTAL-KXTB200922012.htm Tessier A, Campbell P G, Bisson M.Sequential extrac-tion procedure for the speciation of particulate trace metals [J].Analytical Chemistry,1979, 51(7): 844-851. doi: 10.1021/ac50043a017
李非里,刘丛强,宋照亮.土壤中重金属形态的化学分析综述[J].中国环境监测,2005,21(4): 21-27. http://www.cnki.com.cn/Article/CJFDTOTAL-IAOB200504006.htm
